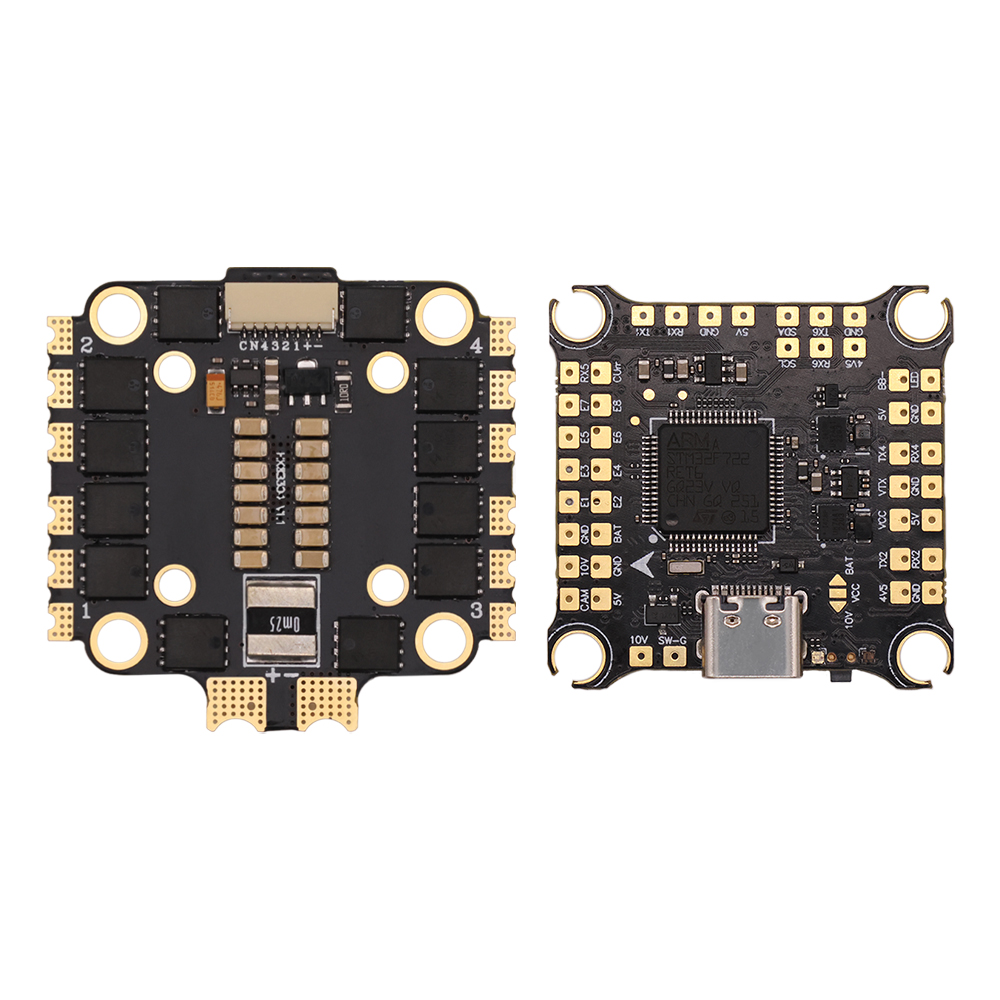

Flight control specification size

Flight control size: 36x36mm

Flight control Net Weight: 8.5g

Mounting aperture: 30.5*30.5mm  Φ4mm

Processor: STM32F722RET6

Gyroscope: ICM42688 dual gyroscope

BEC: 5V/3A; 10V/2.5A

Memory: 16MB

Input voltage: 2S-6S

Firmware: HAKRCF722V2

UART serial port: 6

Comes with four programmable color leds

Comes with 6P Sky Terminal

Electrical parameters

Electric adjustment size: 44mm*44mm

Electric adjustment Net Weight: 13.5g

Fixed hole spacing: 20/30.5mm-20/30.5mm  Φ4mm

Continuous current: 45A

Max current: 50A (10s continuous)

Input voltage: 2-6S

Current ratio: 160

Software：BLHeliSuite16.7.14.9.0.3

Drive signal support：PWM，0neshot125,

Oneshot42,Multishot,Dshot150,

Dshot300,Dshot600

Parts List

M3 orange shock balls x8, 8P line x2, LED4P line x1,CRSF Receiver4p line x1, DJI6P connection line x1, capacitance (35V470UF) x1, XT60 power supply x1, red and black power line x1, (M3X25mm screw) x4, black nut x4, black nut x4, black nut x4, DJI FPV Sky end three -in -one wiring x1, DJI 03AIR Unit three -in -one connection, instruction manual x1
