M6E-G200 New Released 2021

Obstacle avoidance Easier flying Easier maintenance BIG payload

Intelligent Agriculture is the trend of all over the world. And the intelligent drone act as a important role in this world plan.

TTA Agriculture spraying drone can replace the traditional pesticide sprayer and it’s speed is 40times of the traditional sprayer. It will save 90% water and 30%-40% pesticide. Small droplet diameter make the pesticide more well-distribute and improve the effect. At the same time, it will make the people faraway from the pesticide and reduce the pesticide remain of the crop.

Make the life more healthy, make the world more efficient.–TTA

←

→

Model	M6E-G200
Tank Volume	16L
Work Efficiency	2.7-4Acre/10min
Flying
Full payload Flying Time	10-13min
Empty payload Flying Time	≥20min
Flying Speed	0-10m/s
Flying Height	3500m
Landing approach	Vertical take-off and landing
Anti-wind	<12m/s
Positioning	GPS&RTK
Spraying
Spray droplet diameter	80-200μm
Quantity of Nozzles	4pcs
Recommend Spray Speed	4-6m/s
Spray Width	4-6M
Spray Height	2-4M above crop
Spraying Area	32-48 hectares per day

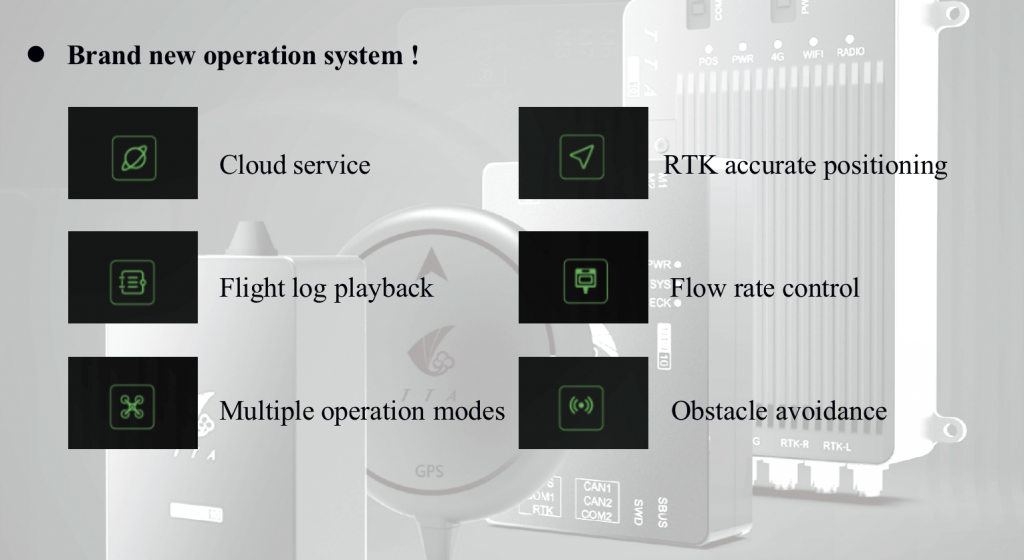

Features of M6E-G200 Agricultural UAV

Automatic spraying mode

: Mode 1: Find your crop field and set waypoint from the GCS GoogleMap, the route will automatically appear. The start point, the final point and the working direction can all be set.

: Mode 2: Import Kml file directly , the route will automatically appear. The start point, the final point and the working direction can all be set.

: Mode 3: Only need to set A and B point and give the drone a direction order thenthe drone will fly and spraying automatically.

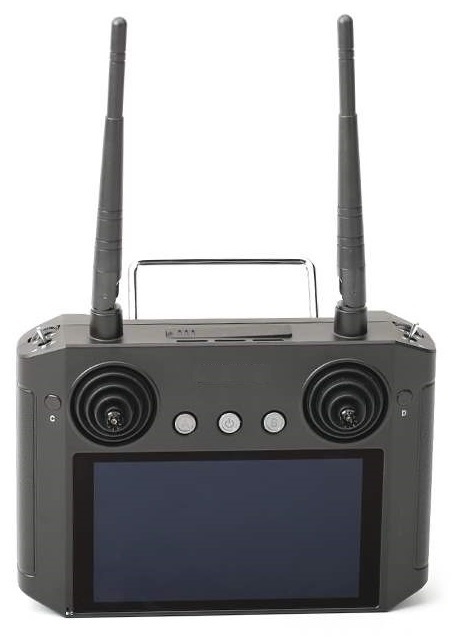

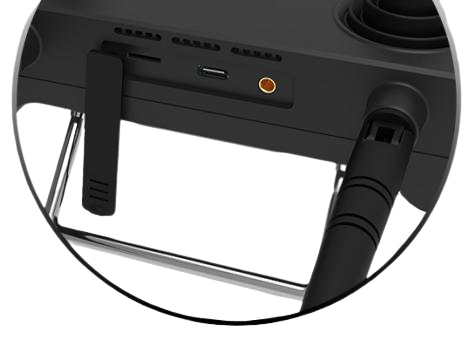

Highly Integrated Remote Controller (optional)

Built-in 5.5 inch Android tablet, equipped with Qualcomm Snapdragon 625

10000mAh battery, Max endurance up to 20 hours, support rapid-charge

Advanced technology brings higher video transmission resolution, lower latency, longer valid distance, stronger anti-interference ability.

RTK accurate positioning system

Accuracy:

Horizontal: ±1cm + 1ppm Vertical：±2cm + 1ppm

Function:

Make sure the field can be fully covered.

To avoid damage neighbour crop and pollution.

One base station supports multiple drones work at same time.

: Spraying syste: Double water pumps generate bigger pressure , max 4L/min adjustable flow rate. Bigger inlet for you to fill in the chemical faster and no leaking. Advanced flow meter makes the error of precise spraying within 2%.

: Obstacle Avoidance Sensor: Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect and fly pass obstacles to avoid unexpected crash and lose. The GCS presents the distance from the obstacles at the same time.

: Terrain following module To make the drone has the ability to work on undulating crop field and make the spraying work much easier.

: FPV camera：Real time video monitoring let you know detail information of drone and your crop situation ! Dual LED light. Support night flight!

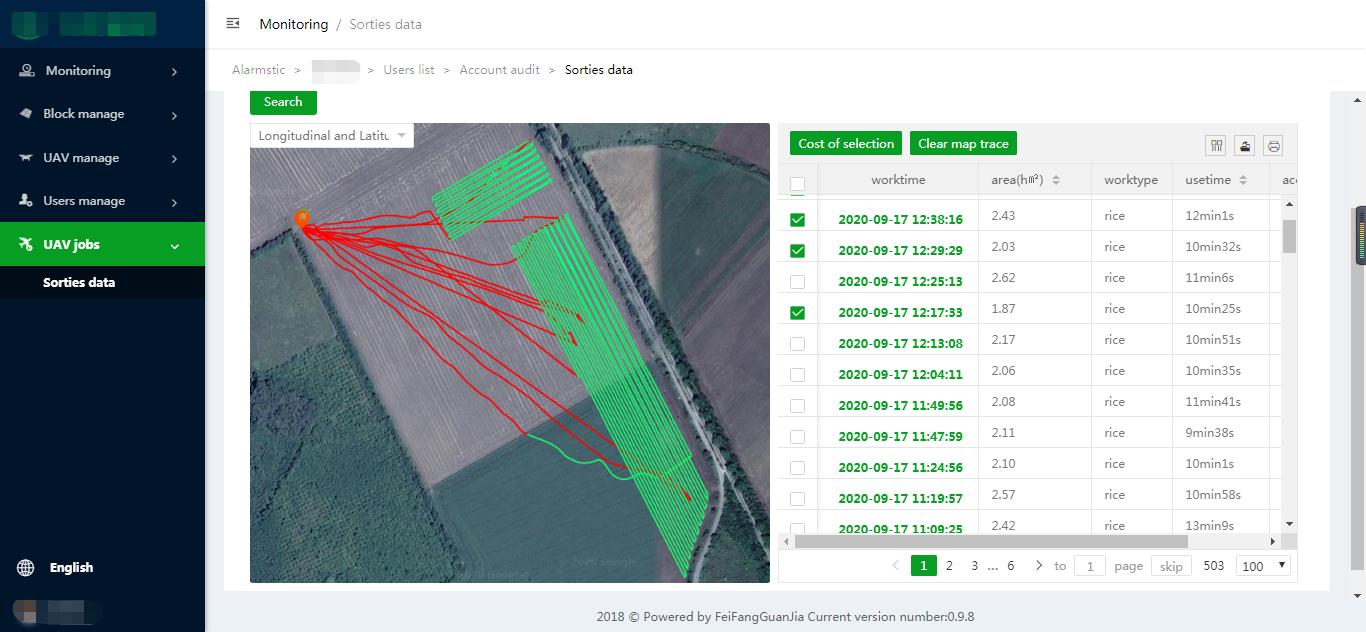

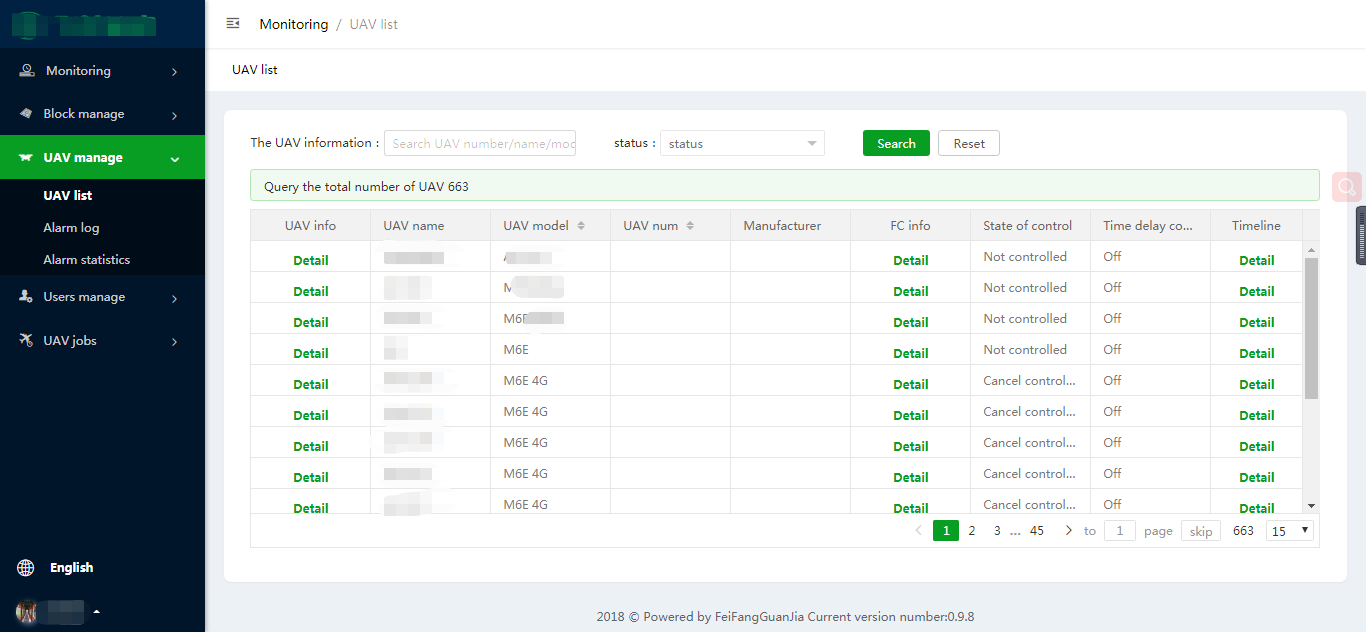

Cloud service / Background management platform

For better management not only your drones but your spraying records !

Support real time monitoring of everything drone situation.

It will collect all the drones data include sprayed area, spraying location, spraying log, etc.

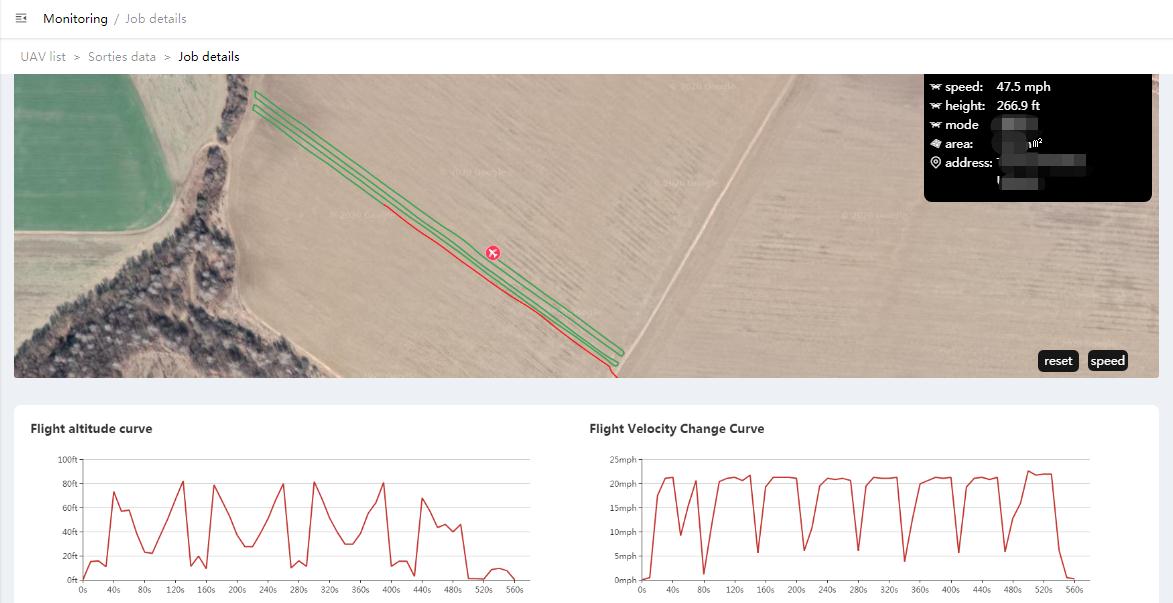

Precheck and After-check

You can review the detail performance of the drone by flight log playback function and also can view the flight route ! Which allow you to check your drone in details before flying and check the mission records after flight.
