Different modes to set the working route plan for your different demands !
Mode 1.

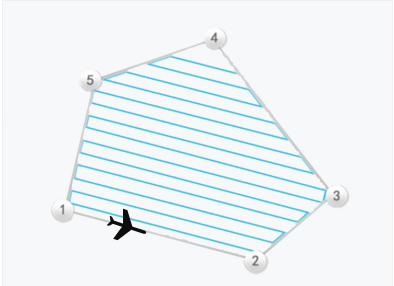

Automatic route planning for irregular topography : Preset the working route on GCS ,find your crop fied on Google Map, the route will automatically appear. The start point, the final point and the working direction can all be set.
Mode 2.
Simple but also automatic AB mode:Operator only need to set A and Bpoint and give the drone a direction order then the drone will fly and spraying automatically.
● Support one key take-off.
● Support one key landing.
● Terrain following modular make the drone has the ability to work on undulating crop field and make the spraying work much easier.
● Powerful and long-life pump, better atomization function with big pressure.
● Big payload and big flow which make the trees spraying easier.
● Modular design, Quick released structure, easy to maintain and lower maintain cost.
● Easy to transport.
● Brushless motor, long-life and easy to maintain. 8 points positioning, stable taking-off.
Techical Info
Detailed Images
Certifications
Our Service
Packing
Videos
Download
DIMENTION | Diagonal wheelbase | 1630mm |
Size Folded L*W*H | 513*473*540mm | |
Container Material | Fiber glass | |
Container Volume | 20KG | |
FLYING | Full payload flying time | 15 min |
Empty payload flying time | 30 min | |
Flying Speed | 0-15m/s | |
Flight Radius | 1.5 km | |
Flying Height | 3500m | |
Landing approach | Vertical take-off and landing | |
Anti-wind | <8.0m/s (28.8km/h) | |
SPRAYING | Spray droplet diameter | 60-180μm |
Quantity of Nozzles | 6 pcs | |
Recommend Spray Speed | 4.8-6m/s | |
Spray Width | 5-8m | |
Spray Height | 1-3M above crop | |
Work Efficiency | 3.5-4.5Acre/15min |
*Automatically route planning and flying.
*It can memory all the routes you have designed to
make the agriculture spraying service easier.
*Support break- point memory.
*Powerful and long-life pump, better atomization function
with big pressure.
*Brushless motor, long-life and easy to maintain. 8 points
positioning, stable taking-off.
Alarm for low power and lower liquid level.
Support emergency stop. One key stop.
*Big payload and big flow which make the trees spraying easier.
*Can spraying for the high trees.

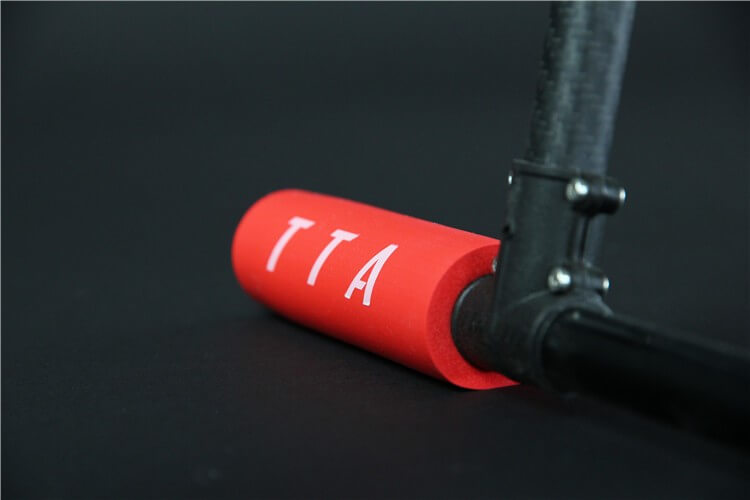

*Special motor supporter design which will protect the motor well.
*Dual 360°Ring LED indicators to alarm when lower power and low liquid level.
*Adjustable flow speed and the nozzles are made in German .
* There is a responsible person for each drone.
*TTA will test every drone before delivery .
*There is serial no. for every drone which can be used to
check it’s whole production process .
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*TTA Education is the bigest AOPA UAV pilot trainingschool.
We supply free training for our customer.
* Engineers available to service machinery overseas.
*Good warranty service. Supply 7days return.
*24h online service to help the customer .
BoxSize | 67*76*92(with wheel) |
Weight | 27kg |
Packaging Details | The drone is packaged by two small portable cartons and the two small cartons can be put in one complete carton. Which compressed the volume and make the transport easier. And we have designed special foam according to the drone structure. The drone inside the box will be fixed. |

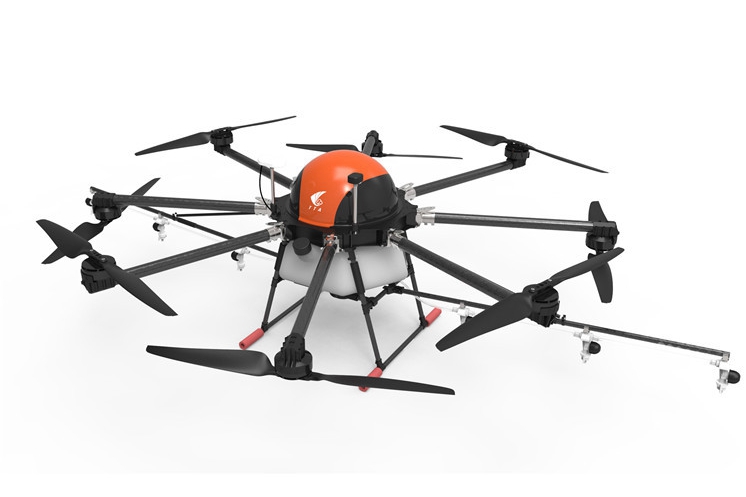

Model | M8A-Pro |
DroneWeight | 20kg |

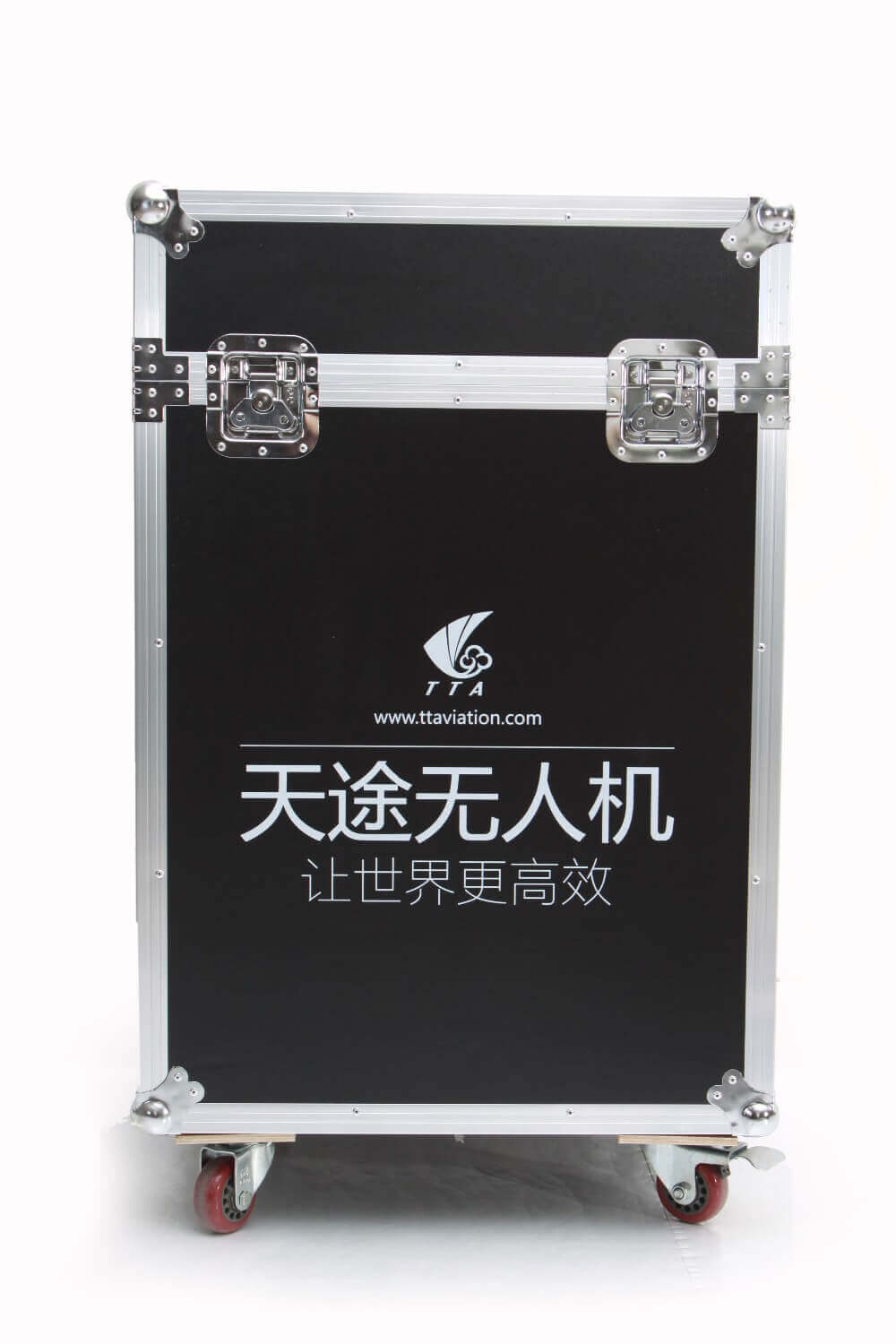

Packaging
Details |
Packing list:1.Fuselage, water tank and remote controller . 2.Arms and propellers 3.Assemble tools |
