Model No. | M6E-XT |
Diagonal wheelbase | 1290mm |
Folded height | 601mm |
Tank Volume | 10L |
Standard Takeoff Weight | 20KG |
Max Takeoff Weight | 24KG |
Work Efficiency | 0.8-1.0hectare/flight(5-10mins)
32~40 hectares/ 8 hours |
Flying | |
Full payload Flying Time | 10-12min |
Max Flying Time | 25-30min |
Flying Speed | 0-15m/s |
Working Speed | 4-6m/s |
Flying Height | 3500m |
Landing approach | Vertical take-off and landing |
Anti-wind | <12m/s |
Spraying | |
Spray droplet diameter | 80-200μm |
Quantity of Nozzles | 6pcs |
Recommend Spray Speed | 4.8-6m/s |
Spray Width | 4-5M |
Spray Height | 2-4M above crop |
FPV Camera | |
Video definition | 720P |
Transmit distance | 1km |
Time delay | Real time |
Display screen | Integrated with GCS (No need extra screen) |
Techical Info
Our Service
Packing
Videos

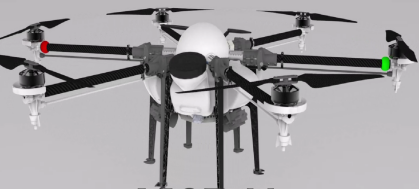

Advantages of M6E-XT:

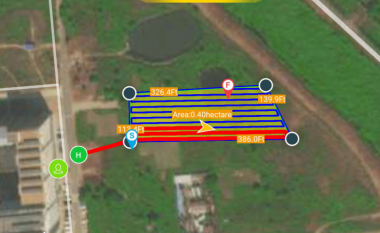

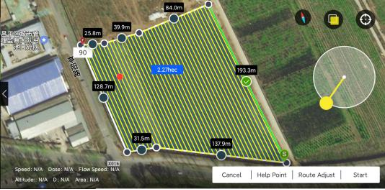

Preset the working route on GCS, find your crop field on Google Map, the route will automatically appear. The start point,the final point and the working direction can all be set.
•Double water pumps + 6 pcs nozzles improve the work efficiency.
•Industrial-class motor,efficient and reliable. And special designed motor holder which carries out fully preservation for the motor.
•Bigger inlet for you to fill in the chemical faster and no leaking.

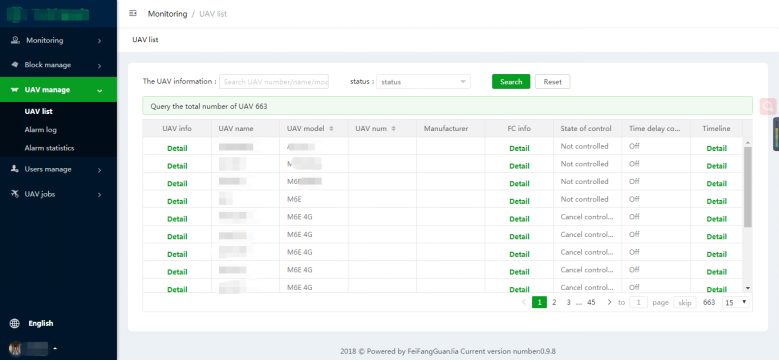

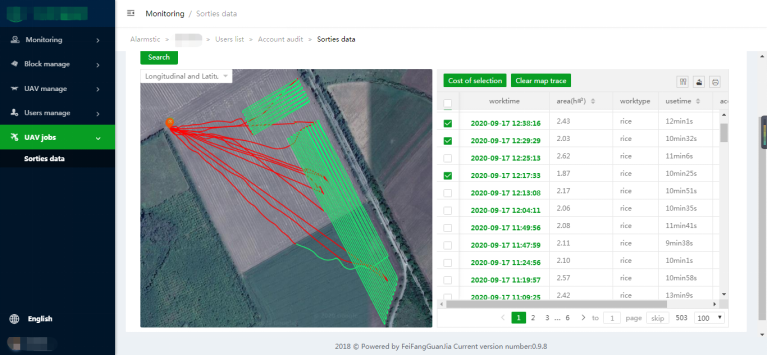

For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation.
It will collect all the drones data include sprayed area, spraying location, spraying log, etc.
Precheck and After-check

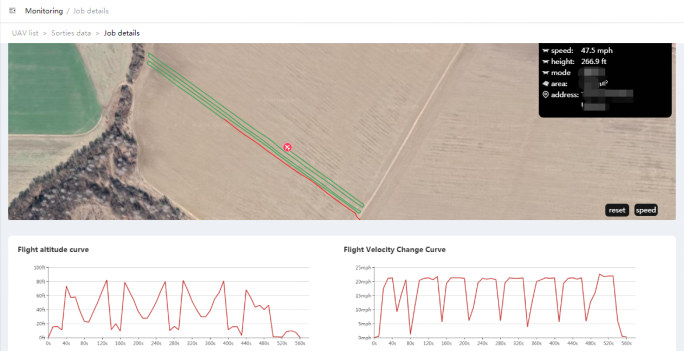

You can review the detail performance of the drone by flight log playback function and also can view the flight route ! Which allow you to check your drone in details before flying and check the mission records after flight.
Name of commodity | Specifications | Remarks |
6 rotors UAV |
fuselage,arms,motors,propellers, electronic speed controllers | |
Remote controller |
TTA Remote controller
|
|

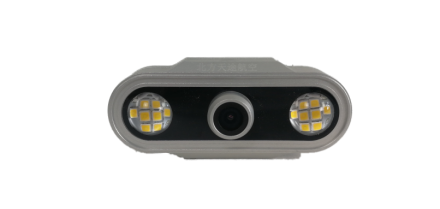

Camera | FPV camera+dual LED lights | |

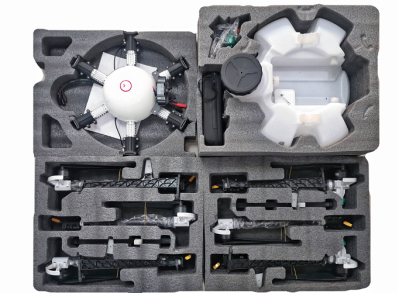

Package | 64*52*64 cm (L*W*H)
GW: 18.5kg |
|
12S Battery /2pcs included in package | 1pc battery/one flight
2pcs in one CTN overall size: 39*31*25 cm (L*W*H) G.W 9.5 kg |
|
12S 10 channels Charger/1set included in package | 47*35*40 cm (L*W*H)
GW: 13kg |
|
Assemble tools | 1 bag |
